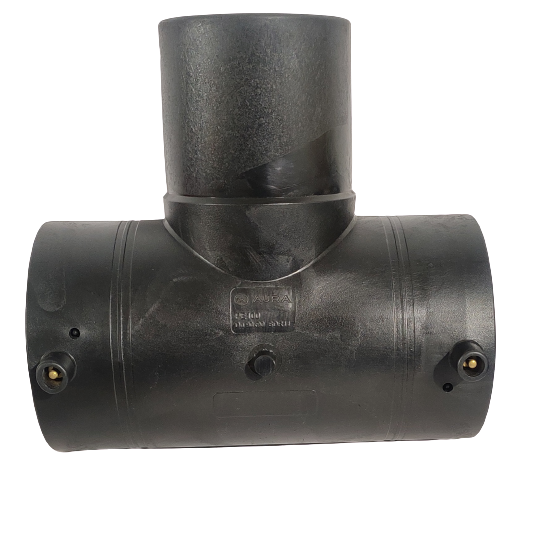

Electrofusion Tee

Name: Electrofusion Tee
Brand: PARTH POLY VALVES PRIVATE LIMITED
Price: 90.0 INR
Availability: InStock

Price 90.0 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

Electrofusion Tee Specification

End Type
Electrofusion

Connection Type
Electrofusion

Capacity
100 Pcs/hr

Tolerance
3 Millimeter (mm)

Thread Type
Plain End.

Port Size
Size : 25x20mm, 63x40mm ,90x63mm , 125x90mm ,160x110mm ,32x20mm ,63x50mm ,90x75mm ,125x110mm ,32x25mm , 75x50mm, 110x75mm ,140x90mm ,50x32mm ,75x63mm ,110x90mm ,140x110mm ,50x40mm ,90x50 mm,125x63mm ,160x90mm,

Pressure Ratings
16Kg

Coating Type
HDPE

Application
Industrial

Working Presssure
16Kg,

Diameter
As per Mfg Std. Millimeter (mm)

Temperature Range
100 Celsius (oC)

Material Grade
PE100

Material
HDPE

Product Type
Tee

Standard
ANSI

Surface Treatment
Other

Outer Diameter
As per Mfg Std. Millimeter (mm)

Section Shape
Other

Length
As per Mfg std. Millimeter (mm)

Color
Black

Usage
Industrial

Rated Pressure
16kg

Electrofusion Tee Trade Information

Minimum Order Quantity
50 Pieces

FOB Port
Ahmedabad

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Delivery Point (DP), Cash Against Delivery (CAD), Days after Acceptance (DA)

Supply Ability
1000 Pieces Per Day

Delivery Time
1 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Box

Main Export Market(s)
Asia, Australia, North America, South America, Eastern Europe, Western Europe, Africa, Central America

Main Domestic Market
All India

Certifications
According to EN1555-3, ISO 4437-3, BS EN 12201-3, ISO 4427-3 & IS 15927-3

About Electrofusion Tee

HDPE Electrofustion TEE , 10 bar 16 bar.

SDR 11 Up to 160 mm

SDR 17 140 & 160 mm

Below 63 mm : SDR 11

63 mm and above : SDR 11 to 17.6

Size : 25x20mm, 63x40mm ,90x63mm , 125x90mm ,160x110mm ,32x20mm ,63x50mm ,90x75mm ,125x110mm ,32x25mm , 75x50mm, 110x75mm ,140x90mm ,50x32mm ,75x63mm ,110x90mm ,140x110mm ,50x40mm ,90x50 mm,125x63mm ,160x90mm,

Versatile Connection for Industrial Pipelines

Designed to meet rigorous standards, these Electrofusion Tees enable secure and efficient connections for chemical fertilizer and industrial pipelines. Their compatibility with multiple port sizes, along with pressure ratings up to 16kg, ensures adaptability and performance across various sectors. Manufactured from PE100 HDPE, they resist corrosion, pressure fluctuations, and harsh chemical exposures.

Precision Engineering and Performance

Created under strict manufacturing standards, these tees maintain a tolerance of 3 millimeters. The fusion technique delivers robust, leak-proof joints ideal for critical installations. High capacity productionup to 100 pieces per hourensures timely supply for large-scale projects. Each tee undergoes stringent quality checks to maintain reliable operation even at elevated temperatures.

FAQs of Electrofusion Tee:

Q: How should the Electrofusion Tee be installed for optimal performance?

A: The Electrofusion Tee is installed using specialized electrofusion welding equipment to fuse the fitting onto HDPE pipes. Clean both components thoroughly, align the tee, and follow the manufacturers recommended fusion cycle. This process ensures a strong, leak-proof joint suited for high-pressure and corrosive environments.

Q: What advantages does PE100 HDPE material offer for these tees?

A: PE100 HDPE provides excellent resistance to chemical corrosion, high temperatures up to 100C, and pressure up to 16kg. Its robust physical properties guarantee long-term reliability, making it ideal for demanding industrial and fertilizer pipeline systems.

Q: When should I choose an Electrofusion Tee over other types of fittings?

A: Electrofusion Tees are recommended when you require secure, leak-resistant joints in high-pressure or chemically aggressive environments. Their design ensures minimal maintenance and enhanced durability, particularly for pipelines where safety and reliability are paramount.

Q: Where are these Electrofusion Tees most commonly used?

A: These tees are extensively utilized in industrial settings, chemical fertilizer pipelines, water supply systems, and areas where chemical and mechanical durability are critical. Their versatility and reliability make them a preferred choice for infrastructure projects and plant installations.

Q: What is the process for electofusion joining, and why is it beneficial?

A: Electrofusion joining involves applying an electric current to embedded coils in the fitting, melting and fusing it securely to the pipe. This controlled process creates a uniform, leak-proof joint that withstands pressure and temperature fluctuations, significantly reducing the risk of system failure.

Q: Can these tees accommodate different pipe sizes and configurations?

A: Yes, the Electrofusion Tees are manufactured in a wide range of port sizes to suit diverse piping systems. Customizable dimensions ensure compatibility with various pipeline requirements, allowing seamless integration into new or existing infrastructure.
