Pp Ball Valve Flange End

Product Description

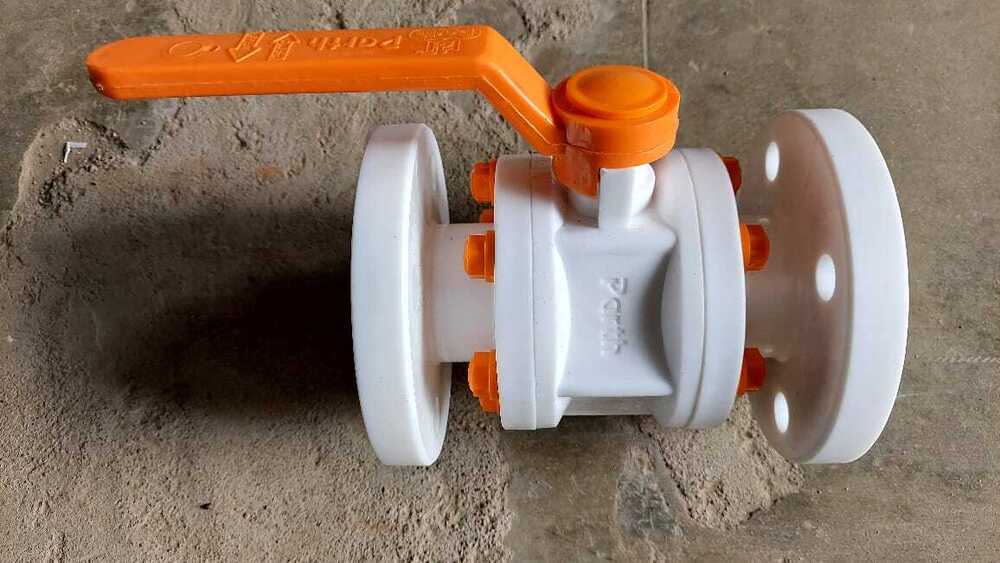

Pp Ball Valve Flange End

Technical Data

Construction 3 piece design Single piece stem spindle Reinforced Ball PTFE seated full bore

Design  Manufacturing STD As per Manufacturers Standard

End Connections Flanged as per ANSI B 165 150  as per BS 10Table DEF  DIN STD

Available MOC

PP POLYPROPYLENE

HDPE HIGH DENSITY POLYETHYLENE

ISOTACTIC PP

PVDF POLYVINYLIDENE FLUORIDE

NO DESCRIPTION MATERIAL OPTION QTY

1 BODY PP  HDPE  ISOPP  PVDF 1

2 SIDE PIECECONNECTOR PP  HDPE  ISOPP  PVDF 2

3 BALL PP  HDPE  ISOPP  PVDF 1

4 STEMSPINDLE MSSS PPISOPPPVDF COATED 1

5 SEAT RING PTFE 2

6 CONNECTOR SEAL NEOPRENE RUBBER  PTFE 2

7 STEM SEAL RING PTFE 1

8 STEM ORING NEOPRENE 1

9 STUD NUT  WASHER MS EN8  SS 316 REQ

10 NUT CAP PP REQ

11 HANDLE MS PP COATED 1

12 HANDLE HEX PIN MS En 8  SS 316 1

13 HANDLE CAP PP 1

SIZE

CODE

IN NB

  15 P1BF01

  20 P1BF02

1 25 P1BF03

1  40 P1BF04

2 50 P1BF05

2  65 P1BF06

3 80 P1BF07

4 100 P1BF08

6 150 P1BF09

8 200 P1BF10

10 250 P1BF11

12 300 P1BF12
