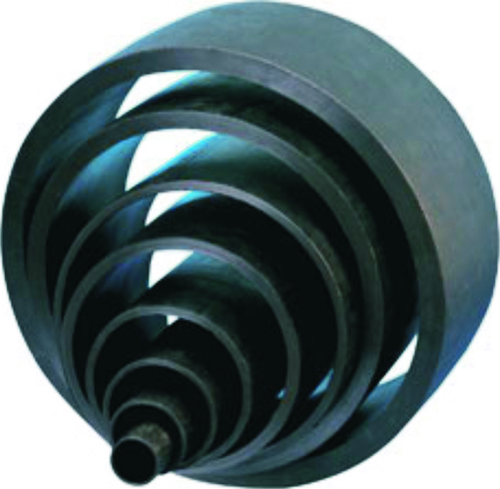

Hdpe Pipe (Pe - 80)

Hdpe Pipe (Pe - 80)

Product Details:

  • Tolerance (+/- 2 mm) Millimeter (mm)
  • Product Type Other
  • Material HDPE
  • Connection Butt Fusion
  • Shape Round
  • Standard Other
  • Surface Treatment Other
  • Supply Ability : 1 Meter Per Day
X

Price And Quantity

  • INR/Meter
  • 1000 Meter

Product Specifications

  • Other
  • (+/- 2 mm) Millimeter (mm)
  • Round
  • Black
  • Round
  • Other
  • As per Manufacturing standard. Millimeter (mm)
  • HDPE
  • In Meter Meter (m)
  • Other
  • 10 months after Dispatch
  • Butt Fusion

Trade Information

  • Ahmedabad
  • Cash in Advance (CID)
  • 1 Meter Per Day
  • 1 Week
  • Yes
  • Sample costs shipping and taxes has to be paid by the buyer
  • HDPE Pipe in 5/6 meter length or in Coil form. Depended on your Order Qty. and Pipe Grade & Size.
  • Asia
  • All India
  • ISO 4427-2007 , ISO 9001:2015 , ISO 14001 - 2015 , OHASA 18001 - 2007

Product Description

Hdpe Pipe (Pe - 80)
"AERO" HDPE PIPES IS 4984 : 2016 ( CM/L : 7887513 )
HSN CODE : 39172110 MATERIAL GRADE : PE : 80

SIZE (MM)

PN 2.5 PN 4 PN 6 PN 10
SDR 41 SDR 26 SDR 17 SDR 11
Pipe Thickness Pipe Thickness Pipe Thickness Pipe Thickness
Min. Thick. Max. Thick. Min. Thick. Max. Thick. Min. Thick. Max. Thick. Min. Thick. Max. Thick.
16
20 1.9 2.2
25 2.3 2.6
32 1.9 2.2 2.9 3.3
40 2.4 2.7 3.7 4.2
50 2 2.3 3 3.4 4.6 5.2
63 2.5 2.9 3.7 4.2 5.8 6.5
75 1.9 2.2 2.9 3.3 4.5 5.1 6.9 7.7
90 2.2 2.5 3.5 4 5.3 5.9 8.2 9.1
110 2.7 3.1 4.3 4.8 6.5 7.3 10 11.1
125 3.1 3.5 4.8 5.4 7.4 8.2 11.4 12.7
140 3.5 4 5.4 6 8.3 9.2 12.8 14.2
160 3.9 4.4 6.2 6.9 9.5 10.6 14.6 16.2
180 4.4 4.9 7 7.8 10.6 11.8 16.4 18.1
200 4.9 5.5 7.7 8.6 11.8 13.1 18.2 20.1
225 5.5 6.2 8.7 9.7 13.3 14.7 20.5 22.7
250 6.1 6.8 9.7 10.8 14.7 16.3 22.8 25.2
280 6.9 7.7 10.8 12 16.5 18.3 25.5 28.2
315 7.7 8.6 12.2 13.5 18.6 20.6 28.7 31.7


PARTH POLY VALVES PRIVATE LIMITED
